Change Your Equinox Fob Battery Without Guessing the Cell

For a Chevrolet Equinox key fob battery replacement, identify the physical fob design, open it only at the point intended for that design, and read the code stamped on the installed coin cell. Photograph the battery’s orientation, then compare its code with the owner’s manual for your exact Equinox model year.

For the transmitter shown in the 2022 Chevrolet Equinox owner’s manual, pages 12–13, Chevrolet specifies a CR2032 or equivalent, with the positive face toward the rear cover. That is a verified 2022 example, not a compatibility claim for every Equinox year, replacement remote, or Equinox EV.

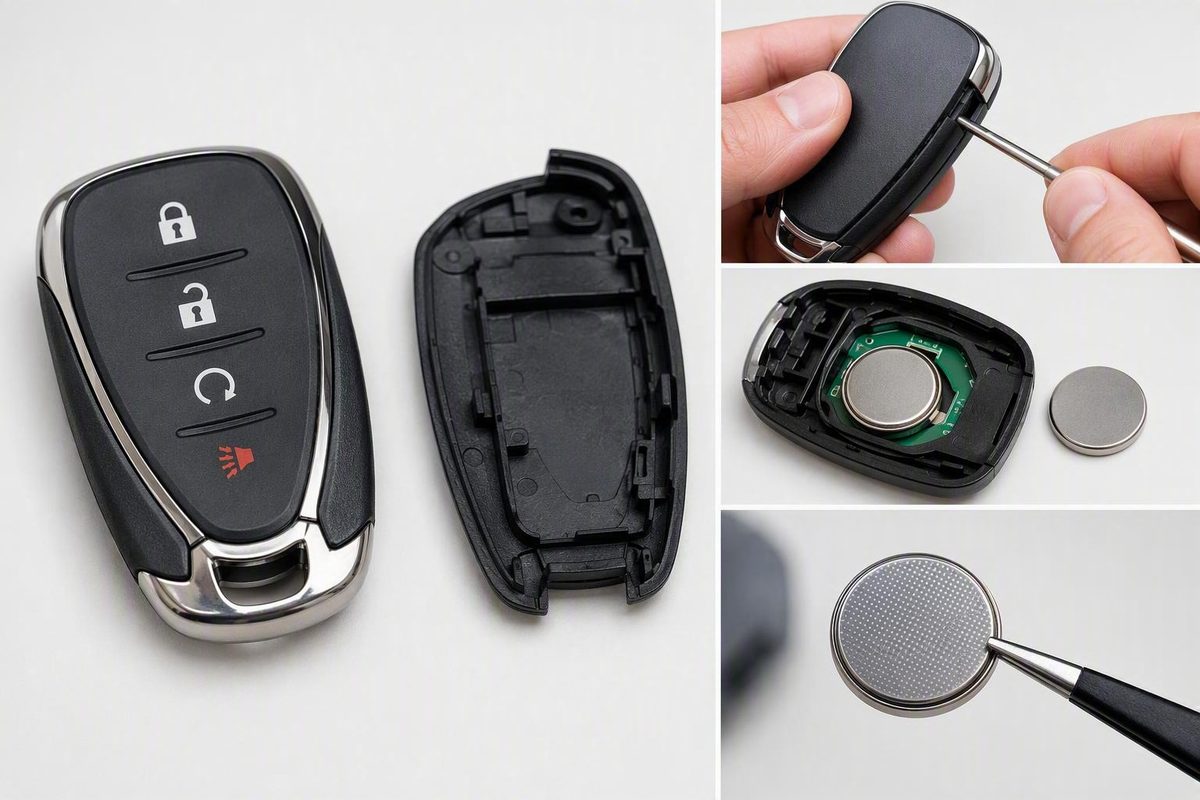

Replace the Battery: Verified 2022 Equinox Procedure

Compare your transmitter with the manual’s illustrations before starting:

1. Press the side release and withdraw the mechanical key.
2. Use a flat tool near the key slot to separate the housing.
3. Push the old battery and slide it toward the transmitter’s bottom.
4. Fit the CR2032 with its positive face toward the rear cover; seat it securely.
5. Check that the silicone mat lies flat, without wrinkles or gaps.
6. Place the button half face down on a firm surface and press the rear half straight onto it.
7. Reinsert the key.

Avoid touching the circuitry. Keep loose coin cells and the transmitter away from children; swallowed batteries can cause severe internal injuries and require immediate medical attention. Follow the manual’s disposal and handling warnings.

For another year or a different housing, use Chevrolet’s model-year manual lookup. Do not move a circuit board or force a case based on generic Chevrolet instructions.

Close the case and test every equipped function

Inspect the case seam after reassembly. It should be even and fully closed. Press each button and confirm that it moves and returns normally.

Test only the functions fitted to your Equinox:

• Lock
• Unlock
• Panic alarm
• Remote start, if equipped
• Passive entry, if equipped

Do not expect a specific operating distance. Compare the fob’s response and usable range with its behavior before the battery change. Improved response may indicate that the weak battery was the problem, while continuing failure calls for further checks.

If you have a working spare fob, test both remotes from the same place. If neither remote works, do not assume that both coin cells failed at the same time.

If the fob still does not work

Reopen the housing and check the installation:

• Confirm that the replacement battery code exactly matches the original.
• Compare its polarity with the photo or note taken before removal.
• Make sure no packaging sticker or film remains on the replacement cell.
• Reseat the battery in its proper position.
• Inspect the visible battery contacts for dirt or displacement.
• Check that any removed buttons or internal components are back in their original locations.
• Confirm that the case closes evenly and no button is held down.
• When practical, test another fresh cell of the confirmed type.

A newly purchased cell may still be weak, so a second battery of the verified type can be a useful test. However, installing a fresh battery does not prove that a continuing failure is caused by a defective fob. The remaining problem may be elsewhere in the fob or in the vehicle’s receiver system.

The available guidance does not establish whether all, some, or no Equinox configurations require resynchronization after a battery change. Do not assume either that programming is always required or that it is never required. Check the owner’s manual for your exact model year before attempting any programming or resynchronization procedure.

If a correctly installed, confirmed battery does not restore operation, use a working spare for comparison when available and seek diagnosis appropriate to the vehicle year, equipment, and physical fob design. The dependable approach is to verify the cell, preserve its original orientation, and use only an opening procedure that clearly matches the fob in your hand.
