Identify Your XC60 Key, Then Replace Its Battery Correctly

Volvo XC60 keys do not all use the same battery. Identify the physical key design before buying a coin cell: the documented 2017 pry-open key uses one or two CR2430 batteries, while the standard key with two sliding shells and a round battery cover uses one CR2032. Battery quantity and polarity also differ, so use only the procedure that matches your key.

First, match the battery to your XC60 key design

The older key documented for the 2017 XC60 has a removable key blade and a casing that is pried open behind the blade-release catch. The standard remote takes one CR2430, while the optional PCC remote takes two.

The other documented standard key has two outer shells that slide off to reveal a round rotating battery cover. It uses one CR2032. Volvo’s support page does not specify the full XC60 model-year range for this design, so match the physical key and consult the vehicle’s manual rather than relying on a year-based assumption.

Key design, applicability, and opening	Battery	Quantity	Polarity
Removable blade; casing pries open behind the release catch with a 3 mm flat-blade screwdriver. Documented for the 2017 standard remote.	CR2430 3 V	One	Positive side down
Removable blade; same pry-open method. Documented for the 2017 PCC remote.	CR2430 3 V	Two	First installed positive-up; second installed positive-down, with the white separator tab between them
Two sliding outer shells and a round cover that turns anticlockwise. Documented standard-key design; confirm applicability by key design and manual.	CR2032 3 V	One	Positive side up

The two 2017 rows follow Volvo’s official 2017 XC60 instructions, while the removable-shell row follows Volvo’s standard-key procedure. Do not use the battery removed from the key as your only guide: a previous replacement may have used the wrong cell or orientation.

Gather the tool and handle the button battery safely

Prepare only the parts and tool required for your key:

• Documented 2017 pry-open key: One or two new CR2430 3 V batteries, depending on whether it is the standard or PCC remote, and a 3 mm flat-blade screwdriver.
• Removable-shell key: One new CR2032 3 V battery and a coin, screwdriver, or another suitable tool for rotating the battery cover.
• Either design: A clean, stable work surface where the battery and small components cannot roll away.

Button-battery warning: Keep new and removed button batteries away from children. Swallowing one can cause severe or fatal injury, and suspected ingestion requires immediate medical attention. Do not install a damaged or leaking battery. Never recharge, burn, dismantle, or short-circuit a non-rechargeable coin cell. Volvo also recommends hand protection when handling the new battery in its CR2032 replacement and safety guidance.

Avoid touching the new battery or its contact surfaces with bare fingers. Hold it by the edge or use clean hand protection.

Replace one CR2430 in the documented 2017 standard remote

Use these steps only for the older-style 2017 XC60 standard remote that takes one battery. Volvo specifies one CR2430 3 V battery with its positive side facing down in its 2017 XC60 battery-replacement instructions.

1. Hold the remote with its buttons facing upward. This helps prevent the battery from falling out when the casing opens.
2. Slide the spring-loaded catch aside.
3. Pull the removable key blade straight backward and out of the remote.
4. Insert a 3 mm flat-blade screwdriver behind the catch at the documented opening point.
5. Pry gently until the casing separates. Do not force the screwdriver deeper into the key.
6. Remove the old battery.
7. Hold the replacement by its edge and install one CR2430 3 V battery.
8. Before closing the casing, confirm that the positive side faces down.
9. Align the two casing halves and press them together securely.
10. Return the key blade to its slot and press it in until it clicks.

The final polarity check in step 8 matters because the PCC remote and removable-shell key use different battery arrangements.

Replace both CR2430 batteries in the documented 2017 PCC remote

Use this procedure only after confirming that the older-style 2017 key is the PCC version. The PCC remote takes two CR2430 3 V batteries, installed in sequence with opposing polarity and a white plastic separator tab between them, according to Volvo’s documented PCC procedure.

1. Hold the remote with the buttons facing upward.
2. Slide the spring-loaded catch aside.
3. Pull the removable key blade straight backward.
4. Insert a 3 mm flat-blade screwdriver behind the catch at the documented opening point.
5. Pry gently to separate the casing.
6. Remove both old batteries while noting the white plastic separator tab.
7. Install the first CR2430 with its positive side facing up.
8. Place the white plastic separator tab over that battery.
9. Install the second CR2430 with its positive side facing down.
10. Check that both cells and the separator tab are seated correctly.
11. Press the casing halves together securely.
12. Insert the key blade and press until it clicks into place.

The stack, in Volvo’s installation order, is:

First battery installed: CR2430, positive side up
White plastic separator tab
Second battery installed: CR2430, positive side down

Do not use this two-cell arrangement unless the key is confirmed as a PCC remote. Similar-looking outer casings are not enough to establish the correct battery quantity.

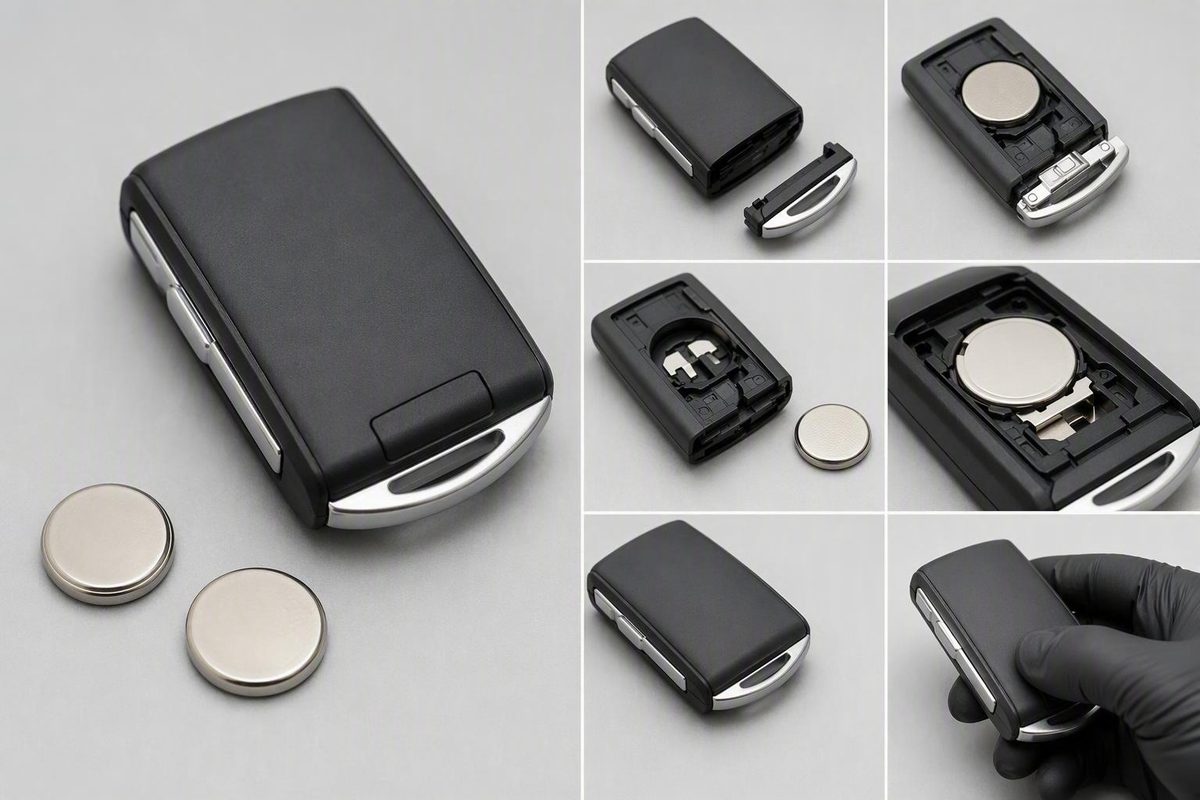

Replace the CR2032 in the removable-shell standard key

Use this procedure when the key has two sliding outer shells and a round rotating battery cover. Match the physical design and vehicle documentation rather than assigning it to an assumed XC60 model-year range.

This key takes one CR2032 3 V battery with its positive side facing up, as specified in Volvo’s removable-shell standard-key procedure.

1. Hold the key with the Volvo logo facing upward.
2. Move the catch at the keyring bracket.
3. While holding the catch, slide the front shell away from the key.
4. Find the second catch exposed beneath the removed front shell.
5. Operate that catch and slide off the rear shell.
6. Use a coin, screwdriver, or another suitable tool to rotate the round battery cover anticlockwise.
7. Press the edge of the old battery to loosen it, then lift it out.
8. Hold the replacement by its edge and place one CR2032 3 V battery into the compartment with the positive side facing up.
9. Position the battery’s edge beneath the two outer plastic catches.
10. Press the battery down beneath the upper catch so that it sits securely.
11. Refit the round battery cover and rotate it into the closed position.
12. Slide both outer shells back into place and check that they are secure.

Before refitting the shells, confirm that the battery sits flat beneath the retaining catches and that its positive side remains visible from above.

Test the key and dispose of the old battery

After reassembly, stand near the XC60 and test both the lock and unlock buttons. A driver-display warning, reduced operating range, or repeated failure to lock or unlock can indicate a low key battery.

If the key still does not respond:

1. Reopen it using only the method appropriate to its physical design.
2. Confirm the battery code: CR2430 or CR2032.
3. Confirm whether the key requires one battery or two.
4. Check each battery’s polarity against the matching procedure.
5. For the removable-shell key, confirm that the CR2032 is seated beneath the documented retaining catches.
6. Check that the casing or shells and battery cover are fully secured.
7. If fitted, confirm that the removable key blade has clicked back into place.
8. Test the buttons again while standing close to the vehicle.

Continued failure does not by itself prove that the key electronics or a vehicle component is defective. If the correct battery type, quantity, polarity, and seating do not restore operation, consult the model-specific owner’s manual or authoritative Volvo support for that exact vehicle and key.

Recycle exhausted coin cells through an appropriate battery-recycling collection point. Until then, keep removed batteries secured where children cannot reach them.

Does a Volvo XC60 key need reprogramming after a battery change?

Volvo’s cited battery-replacement procedures do not establish one programming or synchronization rule for every XC60 model year and key variant. Do not assume that a battery change either always or never requires reprogramming.

First verify the battery type, quantity, polarity, seating, and reassembly. If the correctly installed battery does not restore operation, follow the owner’s manual or contact Volvo support for the exact XC60 and key design.

The practical rule is simple: use the CR2430 instructions only for the documented 2017 pry-open key, and use the CR2032 instructions only for the removable-shell key. Test the key near the vehicle and recycle the old battery safely.
